- Place of Origin:China
- Applicable Industries:Farms
- Applicable Industries:Poultry farm broiler breeder feeding equipment
- Brand Name:CONNECT
- Model Number:Breeder -chain feed

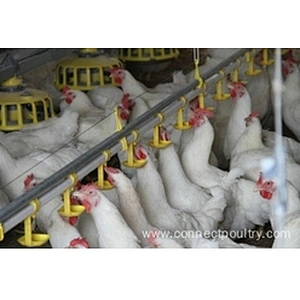

Breeder Chain feeding system
The driving device is cyclical pin wheel reducer, which working more stable, feeding averagely, low noise compare with gear reducer, the feeding speed can up to 36m/min.
The feed trough and connection parts is elevating style, the height can be adjusted according to the different broiler life stage.
The surface of 90 digress corner wheel and guiding orbit have the special treatment of hardness, the bear is no need fill oil whch material is alloy whicn anti. corrosion, and have the long working life
The feeding trough is made of anti -corrosion and rust steel, at the same time equipped with feed grill which size is 44mm, which effectively separate the cock from female breeders, The grill width is variable according to customer needs.
The feeding speed: 36m/min transmission speed is guarantee the rapid and uniform feed transmission, carrying capacity is 0.7-1.5kgs/m, max. transport length is 260meters
Drive: the solid base and special material production ensure the normal and stable operation, in addtion with safety pin device power: 1.5/2.2ke application material line length is 150-300m.
Details Pics

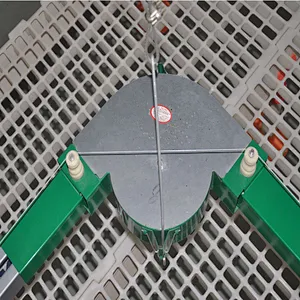

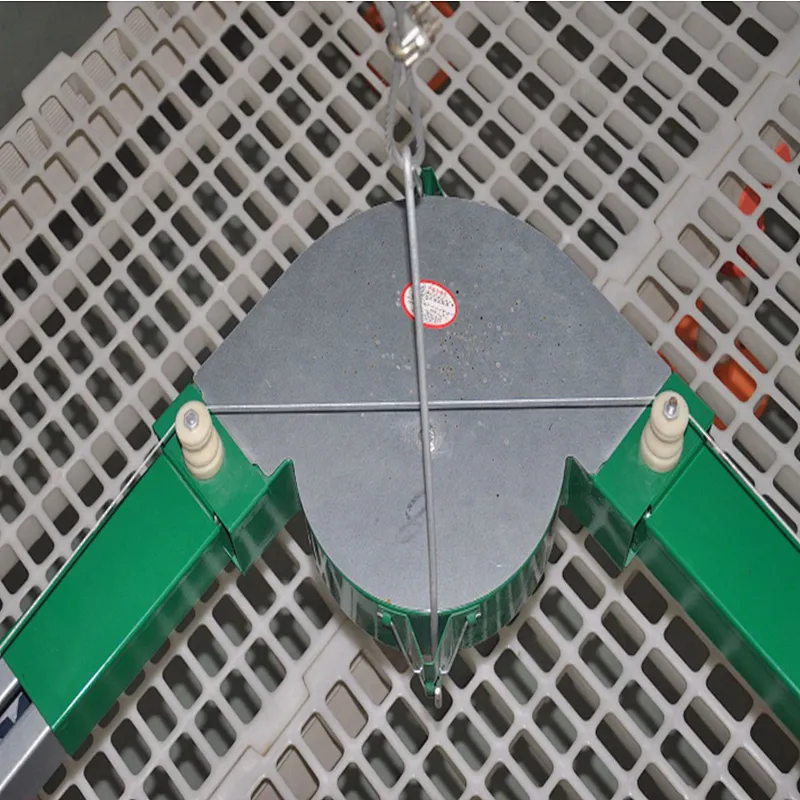

Coner wheel: 90 degree hgih strength angle wheel, drive gear and corner wheel are made of wear resistant material, and after hgih frequency quenching, high hardness, wear resistance.
Chain: South Africa champion brand chain, the world's best chain, high tensile strength, long service life.

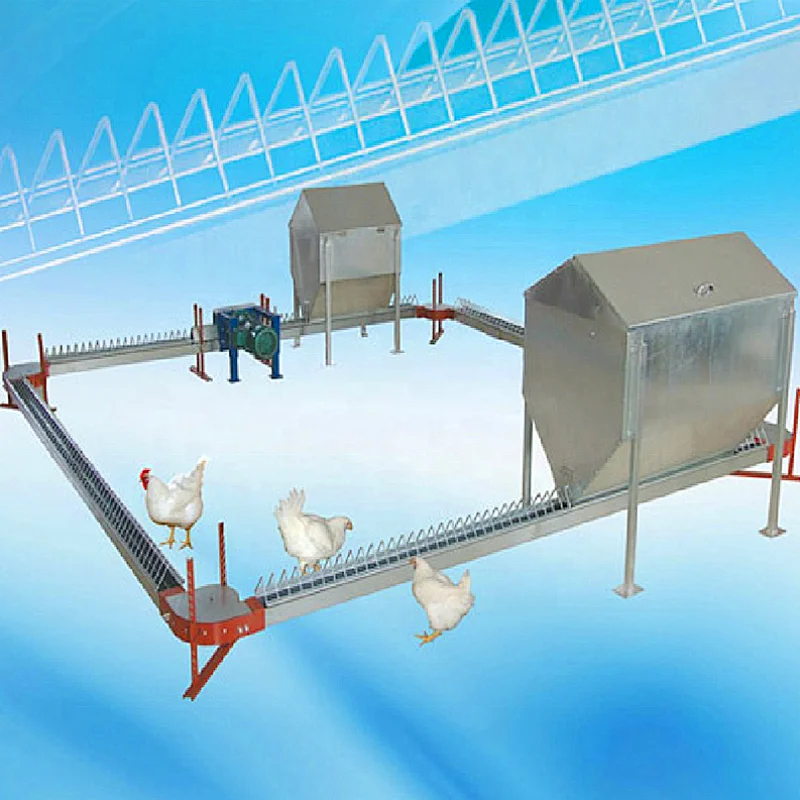

Layout
