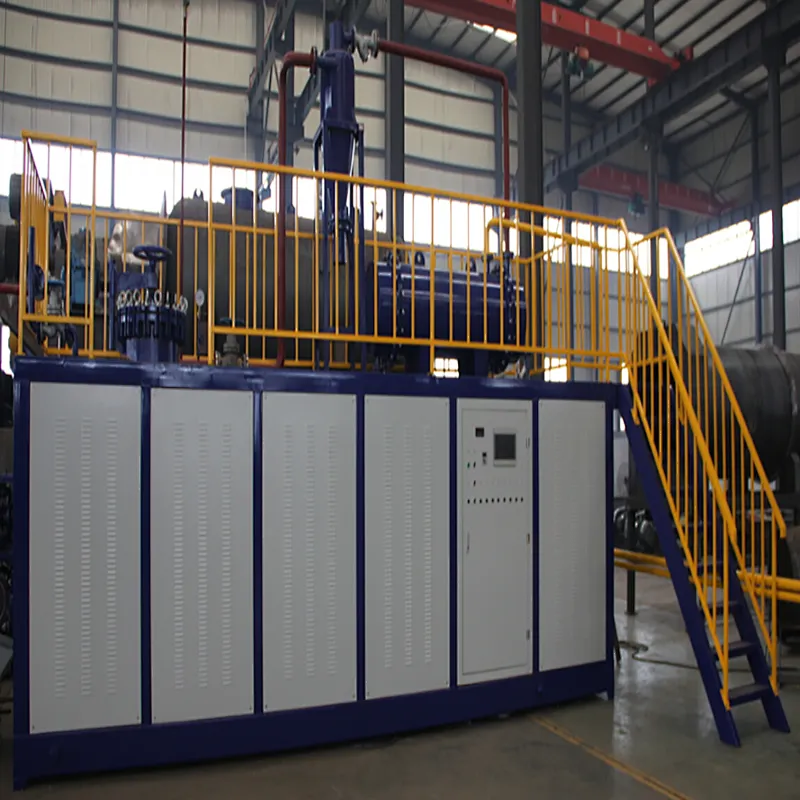

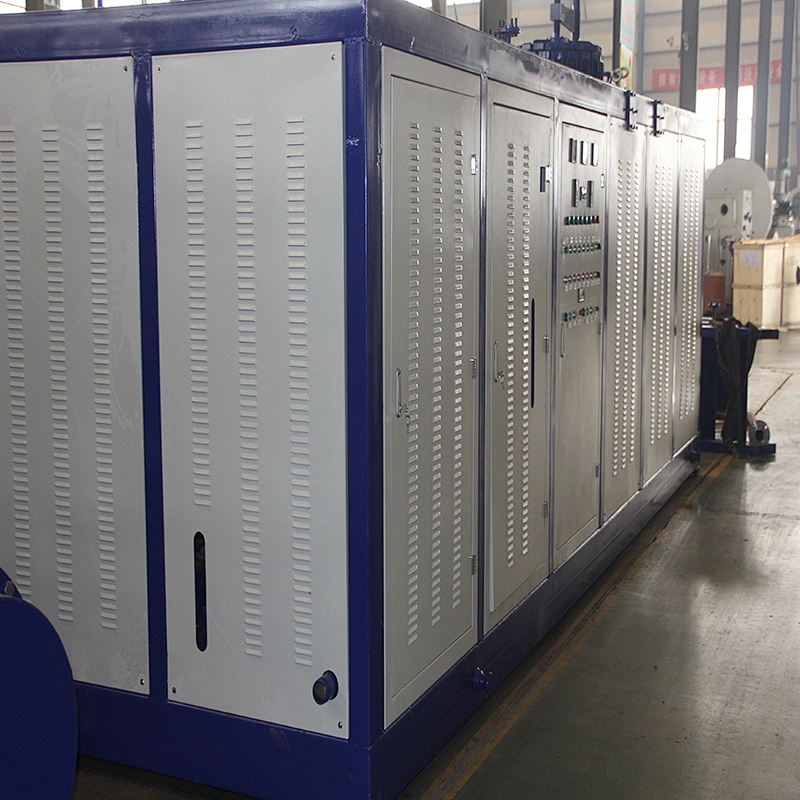

100KG,500KG, 1000KG per hour compact slaughterhouse waste batch cooker rendering equipment for large animals

CZW serial products is compact and small installation area required; stable in transmission, low   noise; Easy operation, simple maintenance, reliable operation and save energy.

CZW serial products use the advanced technical of combined sealing structure, which with the high wear resistance and sealing, at the same time ,this serial production can bear the high temperature, and resist  the corrosive properties of various types of chemicals.

CZW serial products’ driving unit is FAF which is a speed variable device, which reduce the frication caused by the intermediate connecting member; FAF driving unit working stable, save energy.

CZW serial products is suitable for different kinds of poultry feather, animal hide and hair, offal, meat remains, intestinal and others, which all can be turned into autoclaved feather meal, meat or bone meal, etc.

When pressure reach to 0.2-0.3 Mpa and keep it for about 15minutes, during this time, the temperature of material is about 130℃,which to kill E. coli and other bacteria;After that relief the steam in cooker which go to odor processing device; According to the features of different kind of raw material keeping heating for about 4-5 hours, the drying is complete during this time, and discharge the meal and storage it as the fertilizer or feather meal.

Note:If the processed raw material with fat, the oil pressing device can be added to remove the fat, separating device which used to separate the oil and fat; the final production is meat or meat bone meal, and oil which is easy storage and high profit in recycling.

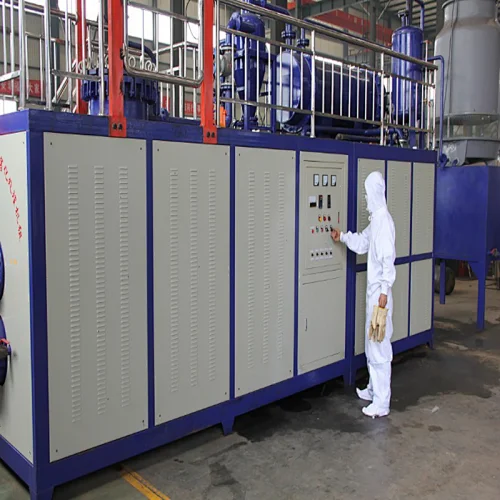

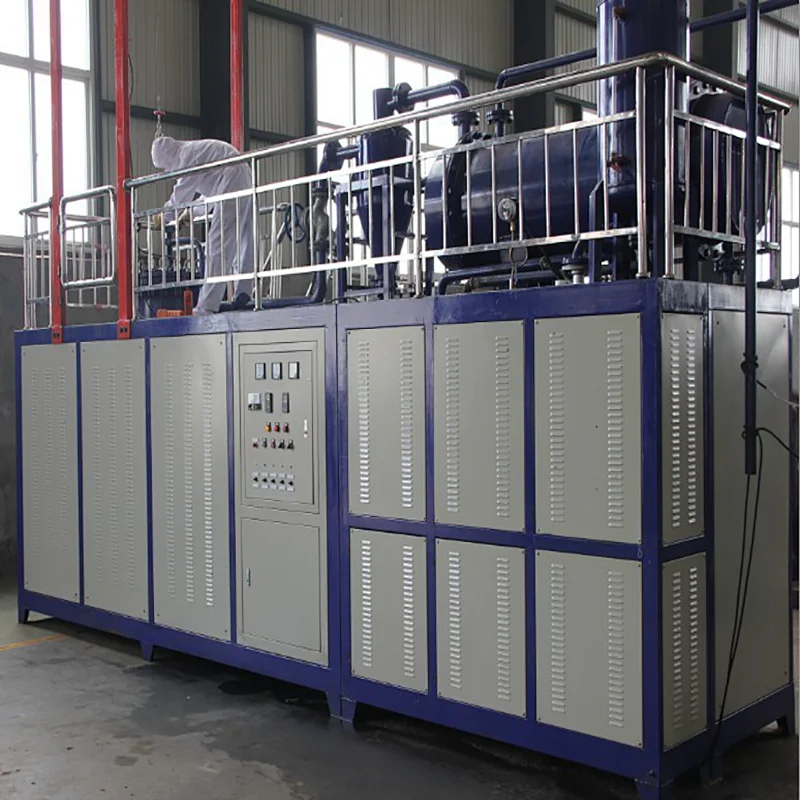

To meet most small users like small poultry farm , and small meat capacity processing plant needs, and save the investment, we invent the compact rendering system. due

The system including the raw material feeding equipment, Batch Cooker & Dryer, odor processing

The heat model two optional way, one is by steam heating, second is by thermal ciculating oil transfer heating by electricity.

The capacity for batch cooker is about 2000 liter, due to it including drying process, can cooker hold about 500 to 1500kilogram raw material.

The system technical data:

Raw material feeding system

Batch cooker:Model:CZS1000-2

Volume:2m2

Capacity:500-1000KGS/batch

Main power:5.5KW

Dimension:3700mm*1500mm*1800mm

With one set of working platform 1set

Cooling unit dimension: 1500x1500x2700mm

Heating system:

Electric oil heater: power:60KW;

HTF circulating heater:power:5.5KW

HTF pump 1set:power:3KW

Circulating pipes, valves, oil tank

Odor process system

Oder condenser; heat exchange area:18M2

Vacuum pump system: power :5.5KW(with one set of vacuum pump, sewage pump, sewage pipes, one set of automatic control system)

 One set of valves, pipes

 One set of cooling tower, cooling water tank volume:1T/H

Circulating pump:power:2.2KW.

Installation area:

The total area of rendering system is 15m2,total operating area:40-50M2

The oil jacket pressure is less than 0.1Mpa

The inside tank design working pressure is 0.4Mpa, the normal working pressure around 0.25Mpa.

 The total weight is around 9Ton

 The temperature in jacket is tank is about 160 degrees centigrade
